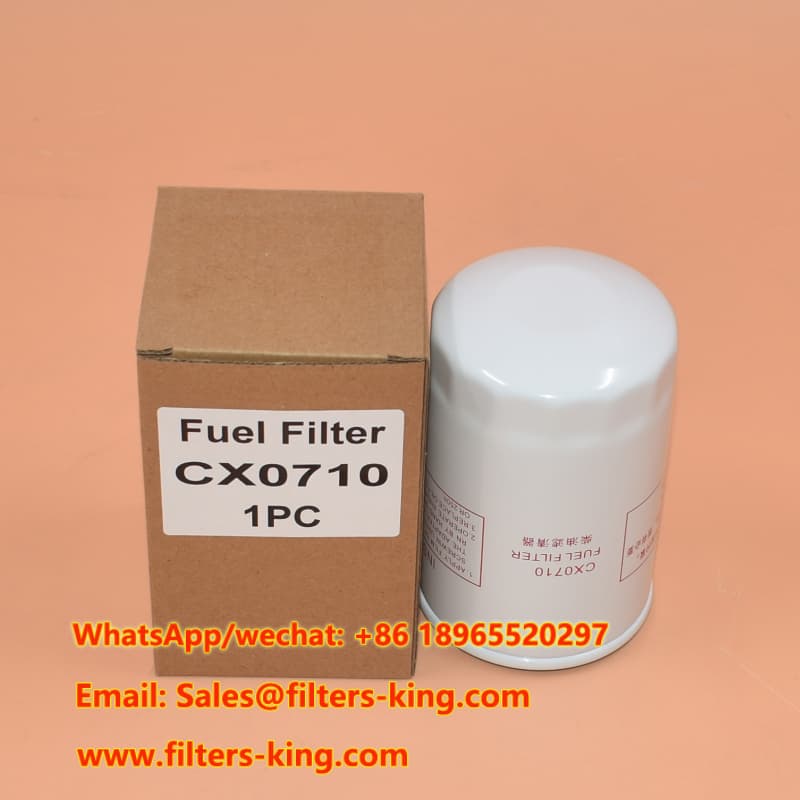

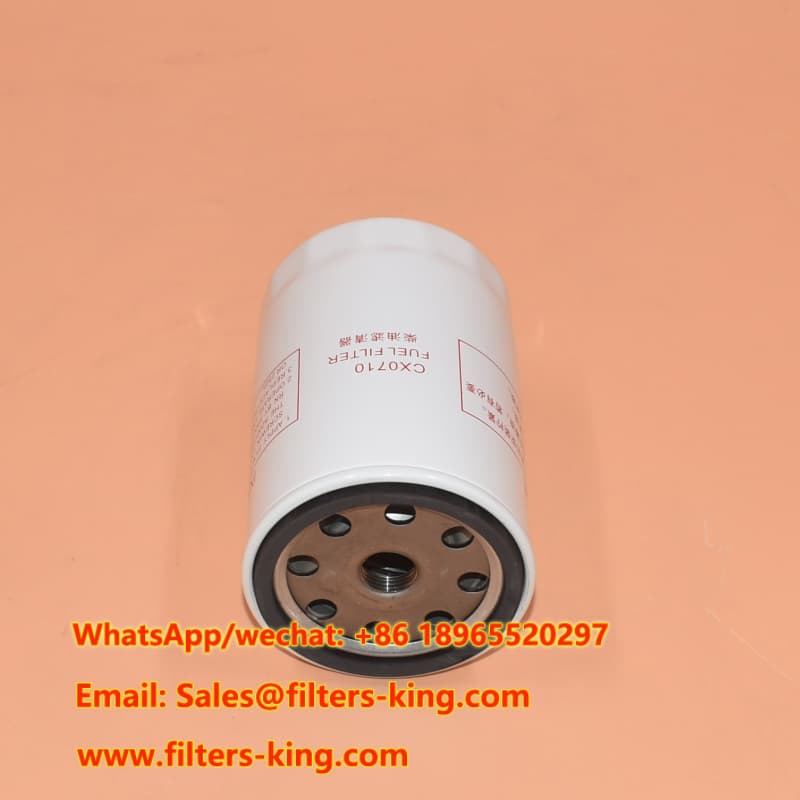

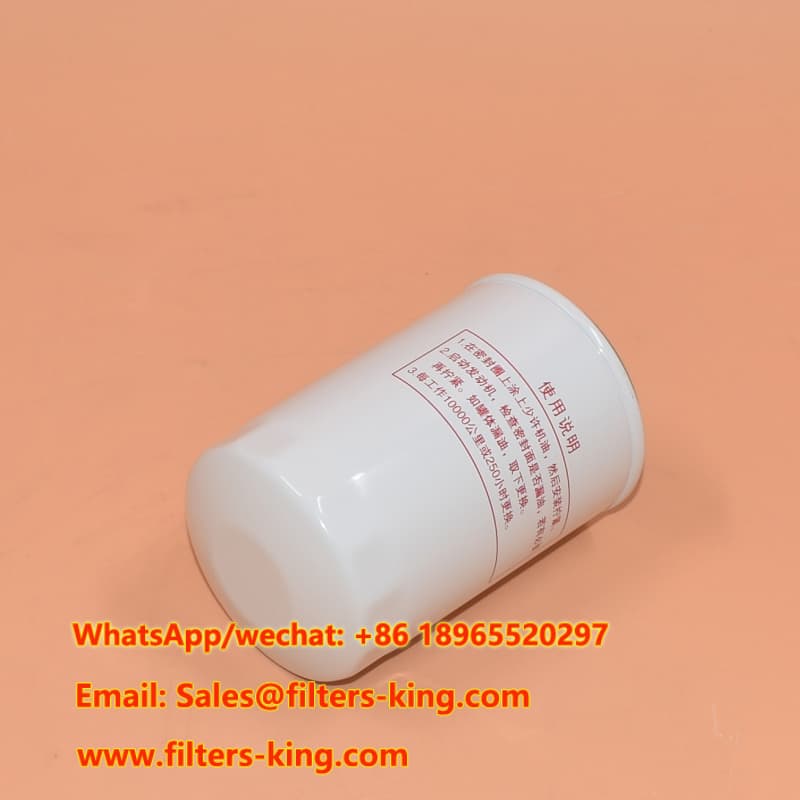

Our CX0710 Fuel Filter Replacement is a spin-on diesel fuel filter designed for selected Yuchai diesel engine applications, including YC6105, YC6108, YC6110, YC6112, YC6108ZG and YC6112Z. It is developed as an aftermarket replacement solution for professional distributors, filter retailers, wholesalers and after-sales service providers.
With a compact 76.8 mm outer diameter, M16 x 1.5 thread and 120 mm length, the CX0710 is designed for convenient replacement and reliable installation. Publicly available filter references also identify CX0710 with Yuchai applications and list comparable references such as Fleetguard FF5403 and Yuchai 630-1105030.
For buyers looking for a Yuchai Fuel Filter Replacement, this model provides a practical option for maintaining diesel fuel filtration performance while supporting regular fleet and equipment maintenance.
| Item | Specification |
|---|---|
| Part Number | CX0710 |
| Part Type | Spin-on Fuel Filter |
| Brand | Yuchai Replacement |
| Outer Diameter | 3.02 inch (76.8 mm) |
| Thread Size | M16 x 1.5 |
| Length | 4.72 inch (120 mm) |
| Gasket OD | 2.76 inch (70.2 mm) |
| Gasket ID | 2.38 inch (60.5 mm) |
| MOQ | 60 pcs |
The dimensional specifications are also consistent with published specifications for Donaldson P550440, including a 76.8 mm outside diameter, M16 x 1.5 thread, 120 mm length and 70.2/60.5 mm gasket dimensions.
The CX0710 is designed to help remove contaminants from diesel fuel before fuel reaches sensitive engine components. Clean fuel is important for maintaining stable engine operation and reducing the risk of contamination-related fuel system problems.
The spin-on configuration and M16 x 1.5 thread make this filter convenient for replacement applications where the corresponding specifications are required. Buyers should always confirm the original filter number, dimensions and application before ordering.
With a minimum order quantity of 60 pieces, the CX0710 is suitable for wholesalers, filter shops, distributors and equipment after-sales companies that need repeat aftermarket supply rather than single-piece consumer purchases.
As a professional filter manufacturer, CHINA EVERLASTING PARTS CO., LIMITED supports OEM ODM Fuel Filter programs. Packaging, labeling and product supply solutions can be discussed according to project requirements and order quantities.
| Engine / Application | Application Status |
|---|---|
| Yuchai YC6105 | Compatible application |
| Yuchai YC6108 | Compatible application |
| Yuchai YC6110 | Compatible application |
| Yuchai YC6112 | Compatible application |
| Yuchai YC6108ZG | Compatible application |
| Yuchai YC6112Z | Compatible application |
Independent filter catalog data also lists YC6105, YC6108, YC6110, YC6112Z and YC6108ZG among the engine applications associated with CX0710.
The following numbers are provided as cross-reference information for professional buyers. Cross-reference numbers can vary by manufacturer and application, so please confirm the dimensions and engine application before purchasing.
| Brand | Cross Reference Part Number |
|---|---|
| Baldwin | BF788 |
| Donaldson | P550440 |
| Dongfeng Motor | K1117000A |
| FAW | K1117001A |
| Fleetguard | FF5403 |
| Hifi | SN 35057 |
| John Deere | 3BP20509 |
| Weichai | K1117001A |
| Wix | 33358 |
| Wuxi Diesel | 111705001 |
| Yuchai Eng Machinery | 6301105030 |
Published filter references independently associate CX0710 with Yuchai 630-1105030 and Fleetguard FF5403, while other catalog sources list additional cross-reference numbers.
For professional buyers, choosing a suitable Aftermarket Fuel Filter involves more than comparing price. Dimensional consistency, application coverage, production stability and supply capability are important factors for repeat orders. Our CX0710 replacement is manufactured for the aftermarket filtration market and is positioned for customers who need a dependable alternative for Yuchai-related diesel engine applications.
As a High Efficiency Fuel Filter supplier, we focus on filtration products for diesel engines, construction equipment, commercial vehicles and industrial applications. Our product range covers fuel filters, fuel water separators, oil filters, air filters, hydraulic filters and other filtration assemblies.
For distributors and filter shops, the CX0710 can also be included in a broader Industrial Diesel Fuel Filter product portfolio. Buyers can contact our sales team for product availability, packaging requirements, OEM/ODM projects and bulk-order quotations.
