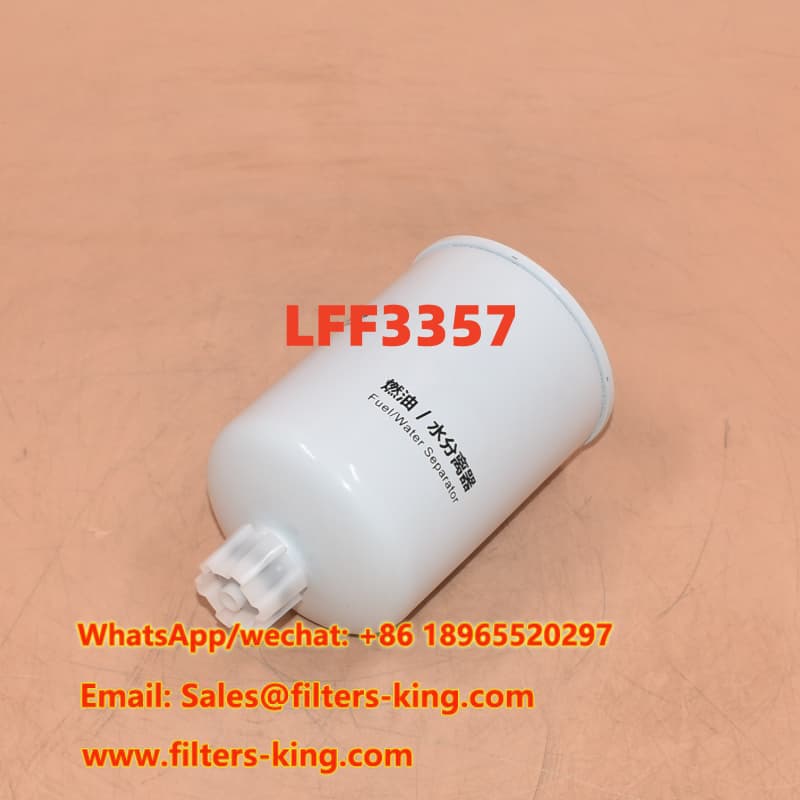

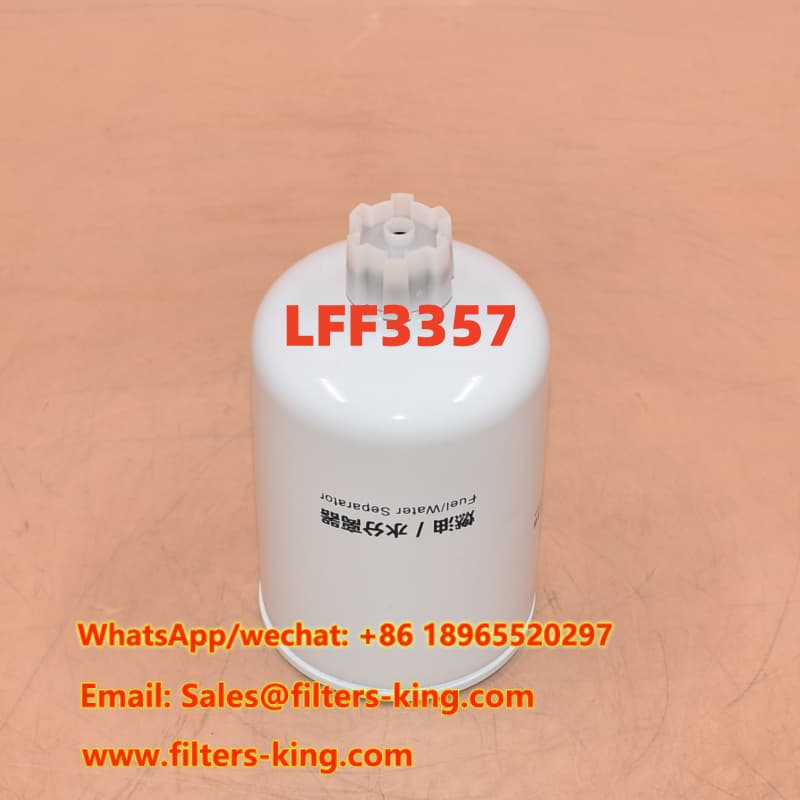

The LFF3357 Fuel Water Separator is a professional Luberfiner replacement filter designed for diesel fuel filtration applications. It helps separate water and contaminants from diesel fuel before they reach sensitive fuel-system components. This Spin-On Fuel Water Separator is a practical replacement option for equipment maintenance, aftermarket service, and bulk filter supply. CHINA EVERLASTING PARTS CO., LIMITED provides replacement filters for professional B2B buyers, with OEM and ODM fuel water separator services available for customized projects.
Diesel fuel may contain water, dust, rust particles, and other contaminants. A suitable fuel water separator helps reduce these contaminants before fuel enters the engine fuel system. This can support cleaner fuel delivery and help protect fuel-system components during normal equipment operation.
The spin-on filter configuration is designed for straightforward replacement during scheduled service. For maintenance teams, repair shops, and aftermarket suppliers, an easy-to-identify replacement filter can simplify routine inventory and service operations.
With a 60-piece MOQ, LFF3357 is suitable for distributors, wholesalers, filter retailers, and aftermarket service providers. Buyers can also discuss packaging requirements, private-label projects, and customized filter solutions with our sales team.
| Specification | Details |
|---|---|
| Part Number | LFF3357 |
| Part Type | Fuel Water Separator |
| Brand | Luberfiner Replacement |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 13/16-18 UN |
| Length | 6.11 inch (155.3 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| MOQ | 60 pcs |
The LFF3357 cross-reference list helps professional buyers identify related replacement part numbers when sourcing diesel fuel filtration products. Cross-reference information should be used together with the original filter specifications, application, thread, sealing dimensions, and equipment requirements. Please confirm the application before installation or bulk purchasing.
| Brand | Cross Reference Part Numbers |
|---|---|
| Agco | 3903410 AG709936 72501531 |
| Atlas Copco | 71029 1310032245 |
| Bomag | 31780219 31780206 |
| Bosch | 986450713 9455080008 |
| Case IH | 84476807 180412 903410 1310729H1 J390942 E156170 J903410 J930942 J925274 |
| Caterpillar | 3L1178 3I1178 |
| Clark Equipment | 913556 |
| Claas | 341771 3417710 |
| Cummins | 1492250 5296139 5268934 4093730 3935274 3930942 3925274 3903410 3890706 |
| Donaldson | P551329 |
| Hitachi | 76107829 76192505 L76107829 |
| Hyundai | YUBP00225 39003410 11E170210PB 11E170210 |
| Ingersoll-Rand | 57150849 88122551 59728196 35374669 |
| JCB | 02910150A 2910150A 2910150 |
| JLG Industries | 7019674 |
| John Deere | F413331 |
| Kamaz | 4811170010 |
| Kobelco | YN50VU0001D2 |
| Koehring | 8320253 207840 |
| Komatsu | CU3903410 CUFS1280 6742015065 6732716120 161623 |
| Manitou | 473728 473725 4133930 |
| Massey Ferguson | 3621278M1 1072418M1 1076748M1 1076748M2 |
| Mc Cormick | MCJ925274 |
| New Holland | V88833 E156170 J390942 71101910 75289652 84476807 83977314 75208274 71101919 |
| Orenstein & Koppel | 1465437 |
| Paccar | 1046Z571 |
| Ppm | K2650575 |
| Sakura | SFC-5706 |
| Sdmo | CL53 330560508 330560192 |
| Terex / Terex Advance | 15270825 |
| Timberjack | 8413331 413331 |
| Volvo | VOE991203410 VOE43923093 VOE36846 991203410 43923093 36846 |
| Wix | WF10051 33357 |
| Yutong Group | 112500007 112500008 |
| Zettelmeyer | 22854649 |
For filter distributors and aftermarket service providers, selecting a suitable replacement requires more than matching a part number. Thread size, sealing dimensions, filter construction, application, and installation requirements should all be checked before purchase. The LFF3357 replacement is supplied for professional diesel filtration applications and can be used as a sourcing option when the original filter information matches the listed specifications.
This product is particularly suitable for buyers who need repeat inventory for equipment maintenance and aftermarket distribution. Our team can review the original part number and application information before a bulk order to help reduce purchasing errors.
CHINA EVERLASTING PARTS CO., LIMITED provides OEM ODM fuel water separator solutions for B2B customers. If you are developing a private-label filter range or need a customized filtration product, our team can discuss product specifications, packaging, labeling, and other project requirements. This service is designed for importers, wholesalers, retailers, filter stores, and aftermarket service companies.
Regular fuel filtration maintenance helps keep diesel fuel systems supplied with cleaner fuel. Service intervals should follow the equipment manufacturer's recommendations and may vary according to fuel quality, operating environment, equipment usage, and contamination levels. During filter replacement, technicians should check the sealing surface, install the new filter according to the equipment procedure, and inspect the system for leakage after installation.
★★★★★
Carlos M. — Filter Distributor
“The cross-reference information helped our purchasing team compare replacement part numbers quickly. The product specifications were also clear for our bulk purchasing process.”
★★★★★
Sarah T. — Aftermarket Parts Buyer
“We needed a practical replacement filter for our aftermarket supply program. The specifications and MOQ made it convenient for our purchasing team to evaluate.”
★★★★★
Kevin R. — Filter Store Manager
“The LFF3357 replacement gives us another sourcing option for customers who need diesel fuel filtration parts. Communication with the supplier was straightforward.”
LFF3357 is a Luberfiner replacement fuel water separator used in diesel fuel filtration applications. It is designed to help separate water and contaminants from diesel fuel.
The listed thread size for this replacement is 13/16-18 UN. Buyers should confirm the original filter specifications before ordering.
The MOQ for this LFF3357 replacement fuel water separator is 60 pieces, making it suitable for B2B wholesale and aftermarket purchasing.
Yes. We support OEM and ODM projects, including customized product requirements, private-label programs, and packaging solutions.
Send us your original filter part number, application, or technical specifications. Our sales team can compare the available information and help you confirm the replacement configuration before purchasing.
