CAT Element Technology

2018-10-23

CAT Oil Filter and Fuel Filter material and technology as that of the original factory. The all have Acrylic beads, Non-Metallic Center Tube, Spiral Roving, Molded End Caps.

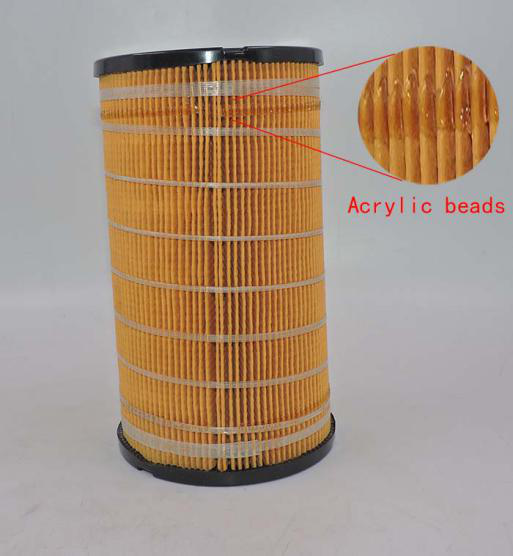

Acrylic beads

CAT oil filter and CAT fuel filter have Acrylic beads which prevent bunching. Many other filters do not exist in this Acrylic beads.

Pleat spacing is rigidly maintained by acrylic beading that prevents bunching and provides maximum filtration surface area throughout the life of the filter. In addition, the integrated seal ensures a separation between the clean and dirty sides of the element.

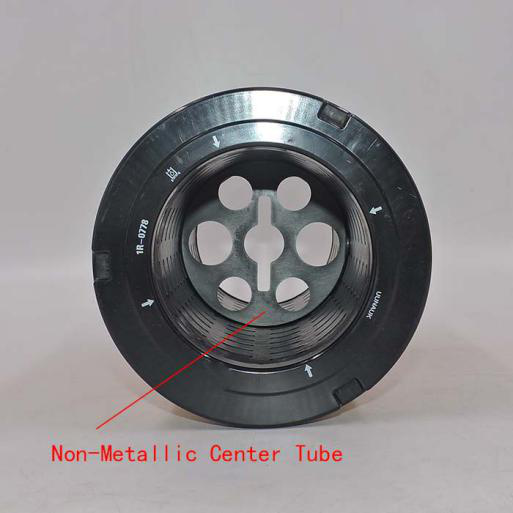

Non-Metallic Center Tube

CAT Filter are made with non-metallic center tubes to better protect the system. And prevents metal contamination

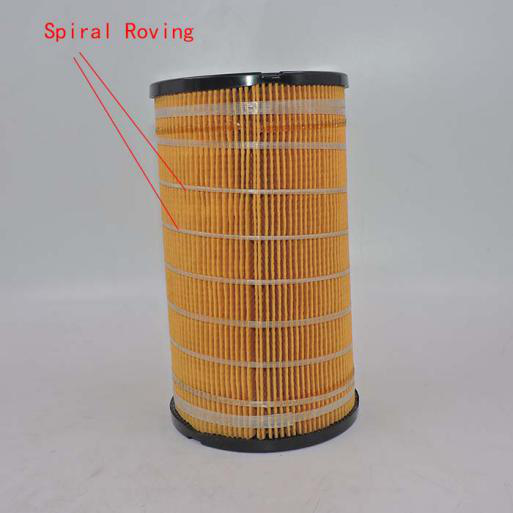

Spiral Roving

CAT Filters feature a unique fiberglass spiral roving to ensure that pleats don’t flex,putting an end to pleat movement.

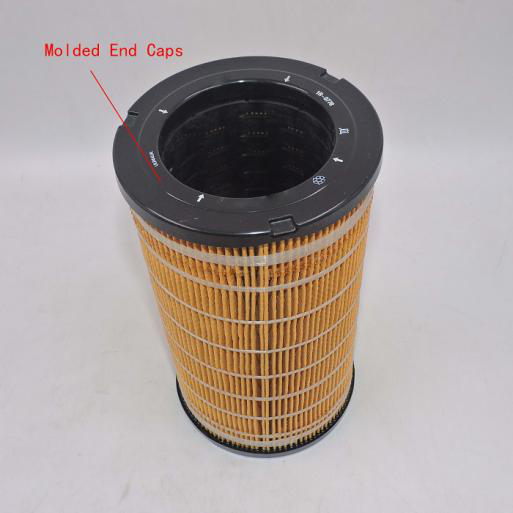

Molded End Caps

CAT filter have Molded end caps which can prevent leaks.
