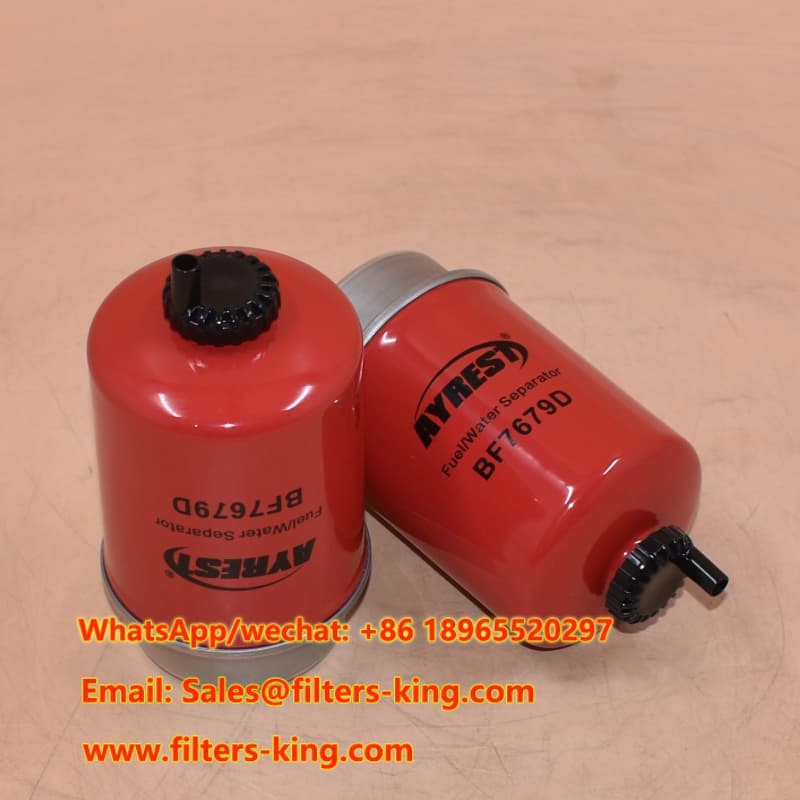

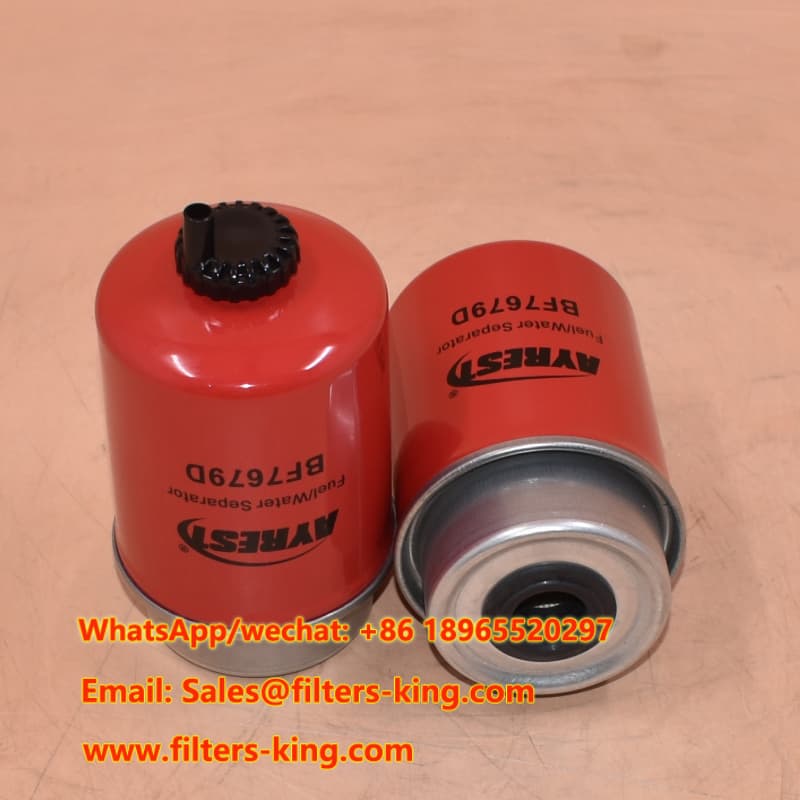

BF7679D Fuel Water Separator is a primary coalescer filter designed to efficiently remove water and contaminants from fuel, protecting injectors and fuel pumps. It features a 40-micron filtration rating, integrated drain valve for easy water removal, and durable spin-on construction for heavy-duty diesel applications. The filter ensures stable engine performance, improved fuel cleanliness, and reduced system wear in harsh operating conditions.
The BF7679D Fuel Water Separator is designed to efficiently remove water and contaminants from diesel fuel systems. It ensures stable engine performance, reduces injector wear, and improves combustion efficiency for heavy-duty equipment and agricultural machinery.
As a Baldwin Fuel Water Separator Filter replacement, this product meets or exceeds OEM filtration performance. The spin-on design allows fast installation and maintenance, reducing downtime for service operations and fleet management companies.
This diesel fuel water separator replacement is widely compatible with John Deere, Caterpillar, Case IH, Donaldson, Fleetguard, and other major equipment brands. It is ideal for B2B customers seeking cross-reference flexibility and stable supply chains.
With verified cross references including RE61723 and multiple OEM numbers, this product ensures correct fitment and consistent filtration performance in real-world agricultural and construction applications.
| Item | Specification |
|---|---|
| Part Number | BF7679D / RE61723 |
| Part Type | Fuel Water Separator |
| Outer Diameter | 3.15 inch (80 mm) |
| Length | 6.07 inch (154.3 mm) |
| MOQ | 60 pcs |
| Brand Position | Baldwin Replacement |
| Application | John Deere 5080G / 540G / 548G / 640G / 6603 / 740G series |
Agco V836862563 7058210M1
Case IH 47107805 162000081002 162000000000 P2950591 162000080845 P2950591P
Caterpillar 1174089
Donaldson P551430
Fleetguard FS19814 FS19555
General Motors 12385299
Hengst H204WK
Hifi SN 70132
John Deere RE61723 RE62424
Liebherr 7381646
Mann WK8115 WK8109
Mc Cormick MC162000080845
New Holland 47107805 162000081002 87840591 84477351
Sisu 836862563 836859302V
Stanadyne 31518 31738 31617 38294 37753 31572 31391 31300
Tec-Fil PSC879
Timberjack F433618
TRP DAF 1535429
Valmet 836859302
Valtra 20359302
Wix WF10087
This spin-on fuel water separator is widely used in agricultural tractors, construction machinery, and diesel engines. It is ideal for wholesalers, aftermarket distributors, and filter retailers who require stable quality and cross-brand compatibility.
★★★★★
John M. (USA, Distributor)
“Excellent replacement for John Deere equipment. Stable quality and fast delivery. Perfect for our wholesale business.”
★★★★★
Michael T. (Canada, Aftermarket Supplier)
“Very good Baldwin cross reference filter. Fits perfectly and performance is consistent across batches.”
★★★★★
David R. (UK, Filter Retailer)
“Reliable OEM alternative fuel water separator. Our customers trust this product for heavy-duty machines.”
We are a professional high-quality filters manufacturer in China. Our product range includes air filters, oil filters, fuel filters, hydraulic filters, air oil separators, fuel water separators, and filter assemblies. We support OEM and ODM services for global customers, ensuring flexible production and stable supply for B2B partners.
