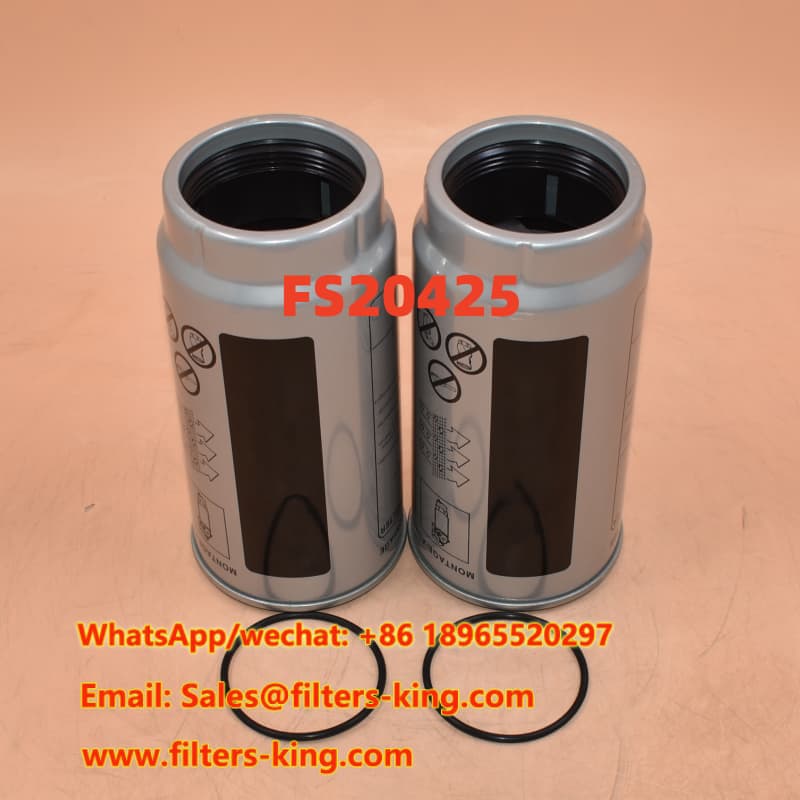

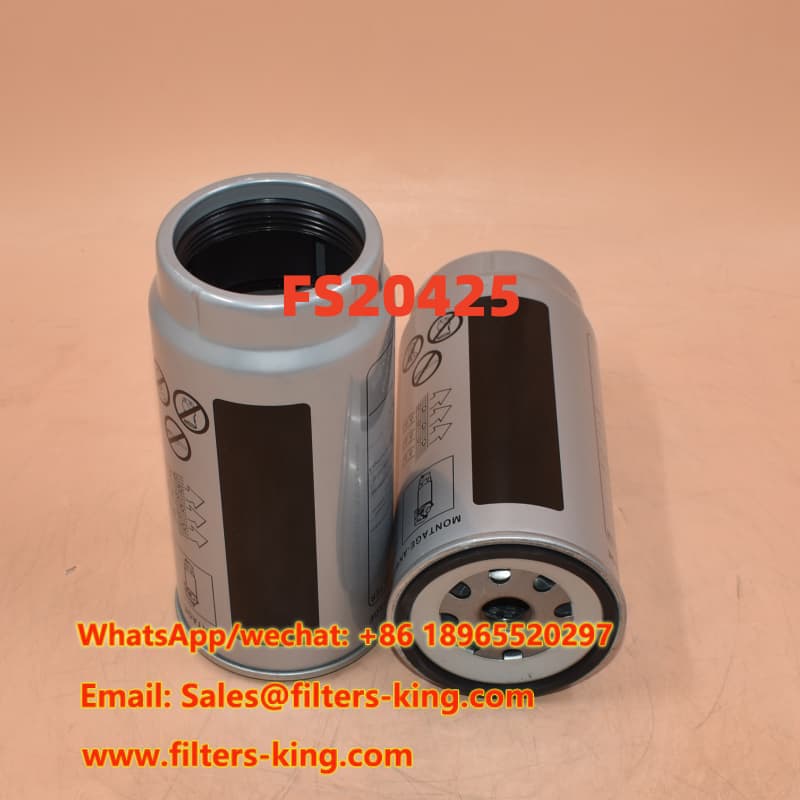

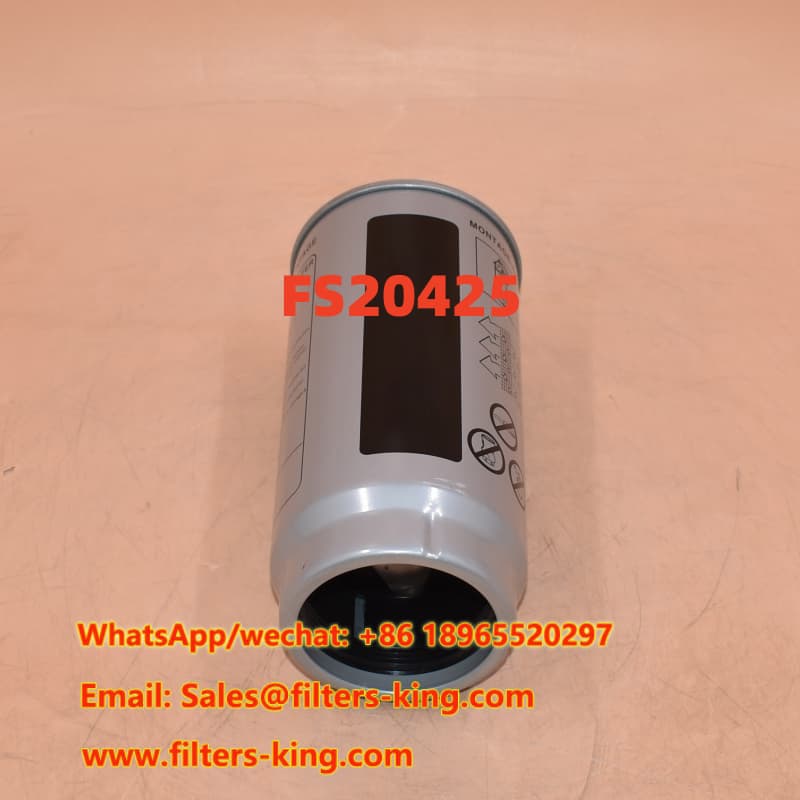

The Aftermarket Fuel Water Separator FS20425 is a Fleetguard replacement filter designed for diesel fuel systems that need effective separation of water and fuel contaminants. It is a practical choice for professional filter distributors, wholesalers, retailers, filter stores, and after-sales service providers. By helping remove water and unwanted particles before fuel reaches sensitive engine components, this fuel water separator supports cleaner fuel delivery and reliable diesel system operation.
CHINA EVERLASTING PARTS CO., LIMITED supplies replacement fuel filters and filtration products for the global aftermarket. For buyers comparing a Fleetguard Fuel Water Separator Filter Price, checking a Fuel Water Separator Cross Reference, or sourcing a stable Diesel Fuel Water Separator Replacement, FS20425 provides a convenient aftermarket sourcing option with a minimum order quantity of 60 pieces.
Fuel Protection: The separator is designed to help separate water from diesel fuel, reducing the risk of water reaching downstream fuel system components.
Aftermarket Compatibility: FS20425 is offered as a Fleetguard replacement and can be used when buyers need an alternative source for regular filter replacement programs.
Professional B2B Supply: With a 60-piece MOQ, this product is suitable for wholesalers, distributors, retailers, filter shops, and service companies purchasing for inventory or maintenance programs.
Custom Sourcing Support: Buyers looking for a Custom Fuel Water Separator can discuss specifications, packaging, private labeling, and other sourcing requirements with our team. OEM and ODM projects are also welcome.
| Parameter | Specification |
|---|---|
| Part Number | FS20425 |
| Part Type | Fuel Water Separator |
| Brand | Fleetguard Replacement |
| Gasket Inside Diameter | 3.66 inch / 93.00 mm |
| Gasket Outside Diameter | 4.06 inch / 103.10 mm |
| Largest Outside Diameter | 4.33 inch / 110.10 mm |
| Thread Size | 1-14 UNF 1B |
| MOQ | 60 pcs |
When purchasing a replacement separator, confirming the part number and application is important before placing a bulk order. The following numbers are provided as common cross-reference numbers for sourcing and identification. Buyers should verify application requirements before installation.
| Brand | Cross Reference Part Number |
|---|---|
| Donaldson | P959081 |
| Hengst | H824WK D718 |
| Hifi | SN 70553 |
| Mann | PL603/1x |
| Mercedes-Benz | A9604770503001 9604770503 |
| SF Schupp | SK 48946 |
Water and particulate contamination can affect diesel fuel system performance. A properly matched separator helps improve fuel cleanliness and supports routine maintenance requirements.
FS20425 gives distributors and service providers another sourcing option when they need replacement filtration products for diesel equipment and maintenance applications.
A 60-piece MOQ is suitable for B2B buyers who need to maintain inventory for recurring customer orders, equipment service, and aftermarket sales.
Our team supports OEM ODM Fuel Water Separator projects and can discuss custom requirements for professional filtration buyers.
We work with retailers, after-sales service providers, wholesalers, and filter stores that need consistent aftermarket filtration supply and responsive communication.
FS20425 is intended for diesel fuel filtration applications where water separation and contaminant control are required. It can be considered for aftermarket maintenance programs, replacement filter inventories, diesel equipment service, and professional filtration distribution. Always compare the original part number, dimensions, thread, gasket specifications, and equipment requirements before ordering.
Carlos M. — Wholesale Filter Buyer
“The cross-reference information made it easier for our team to confirm the replacement before ordering in bulk. Communication was clear and professional.”
Andrew K. — Aftermarket Service Manager
“We needed a dependable replacement filter for our diesel service customers. The product information and ordering process were straightforward.”
Thomas R. — Filter Store Purchasing Manager
“The MOQ works well for our inventory planning. We appreciate having an aftermarket source for commonly requested fuel filtration parts.”
FS20425 is supplied as a Fleetguard replacement aftermarket filter. It is not presented as an original Fleetguard-branded product.
The MOQ is 60 pieces. Please contact our sales team for current bulk purchasing details.
Yes. We can provide cross-reference information for sourcing and identification. Buyers should confirm the original part number and application before placing an order.
Yes. CHINA EVERLASTING PARTS CO., LIMITED welcomes OEM and ODM projects. Contact us with your required specifications, packaging, labeling, or other customization requirements.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We serve international B2B customers with aftermarket filtration products and welcome OEM and ODM cooperation.
Looking for FS20425 bulk supply? Send us your required quantity, target market, packaging requirements, and cross-reference numbers. Our team can help you confirm specifications and discuss replacement, custom, OEM, or ODM fuel water separator solutions.
