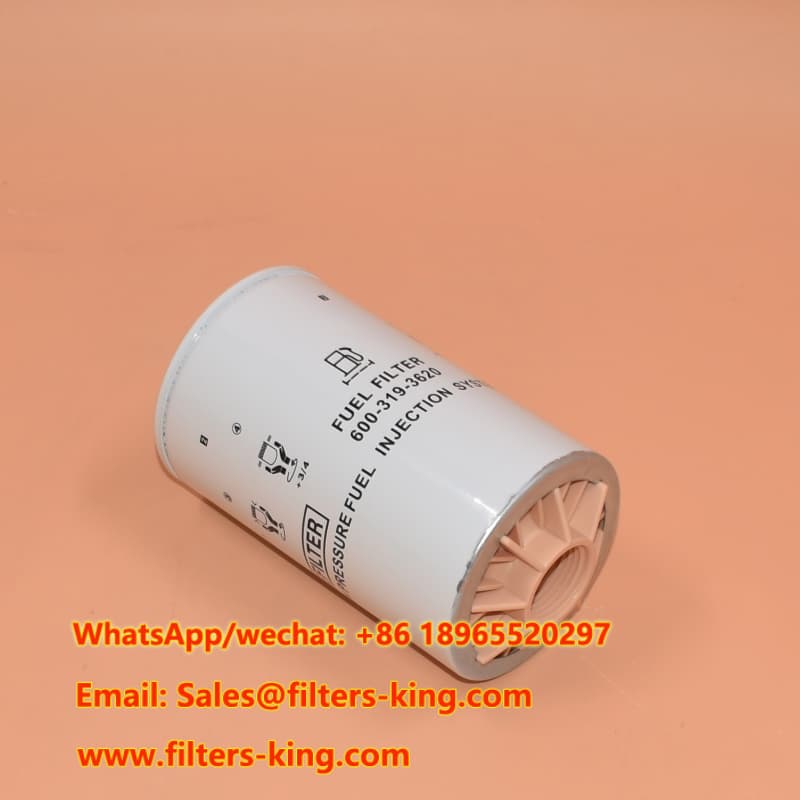

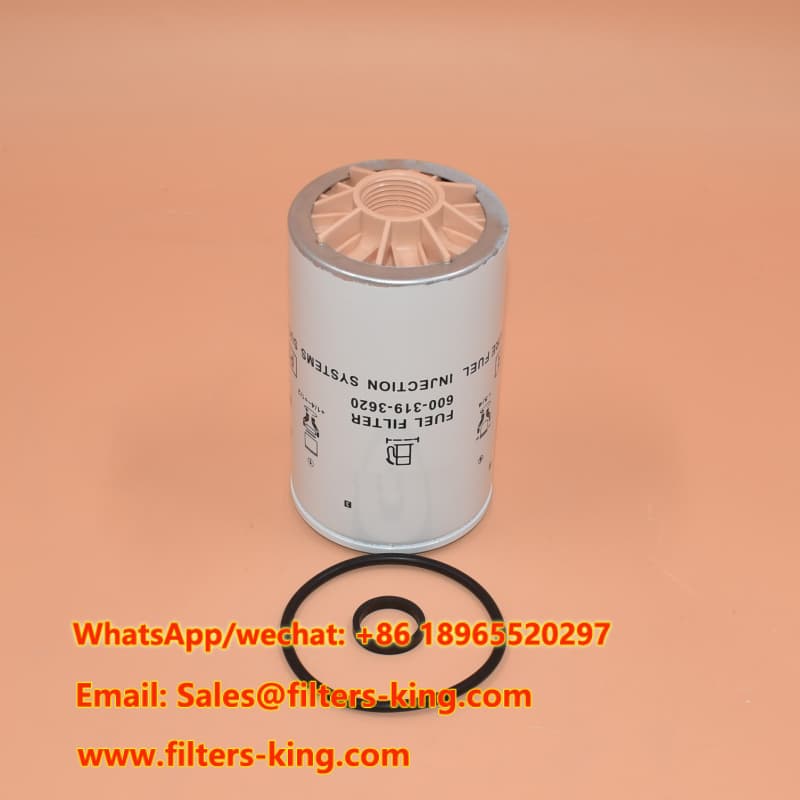

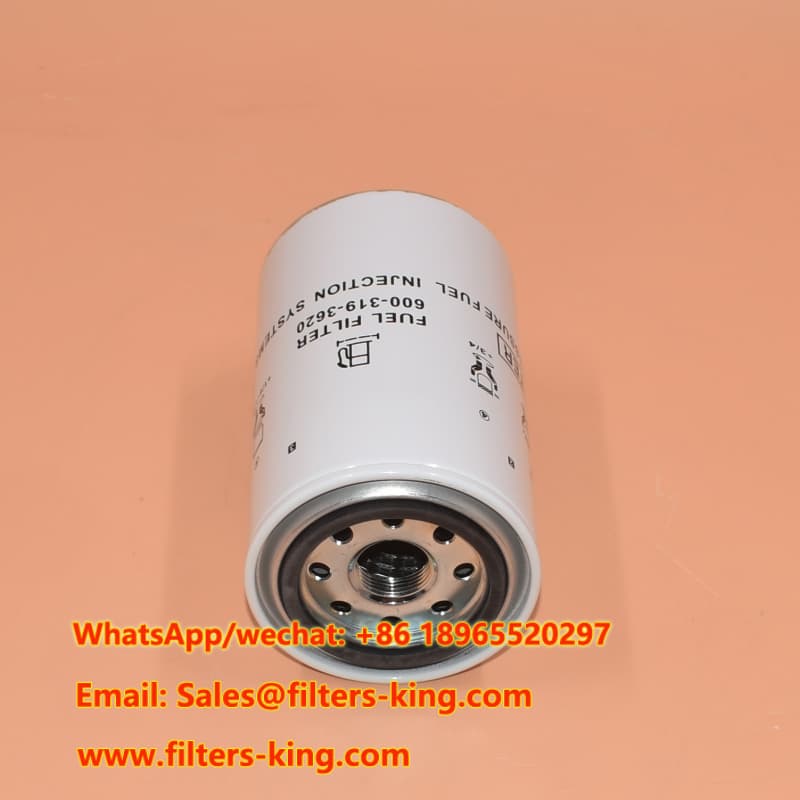

The 600-319-3620 Fuel Water Separator is a spin-on diesel filtration solution designed for Komatsu equipment applications. It helps separate water and filter contaminants from diesel fuel before the fuel reaches sensitive engine and fuel-system components. This replacement filter is supplied by CHINA EVERLASTING PARTS CO., LIMITED for B2B buyers including filter distributors, aftermarket service providers, wholesalers, and filter stores.
The supplied specification is a 3.70-inch (94 mm) outer diameter, 6.14-inch (156 mm) length, 1-14 UN threaded spin-on filter. These dimensions correspond closely with published specifications for the Donaldson P551864 cross-reference family, which is also listed with a 1-14 UN thread, 3.70-inch outer diameter, 6.14-inch length, and 2.46-inch gasket ID.
| Item | Specification |
|---|---|
| Part Number | 600-319-3620 / 6003193620 |
| Product Type | Fuel Water Separator Spin-On |
| Brand | Komatsu Replacement |
| Outer Diameter | 3.70 in (94 mm) |
| Length | 6.14 in (156 mm) |
| Thread Size | 1-14 UN |
| Gasket OD | 2.80 in (71 mm) |
| Gasket ID | 2.46 in (62.5 mm) |
| Bowl Thread | 1 1/4-10 UN |
| MOQ | 60 pcs |
Fuel-water separator filters are especially important in diesel systems because water and contaminants can contribute to fuel-system wear and performance problems. Published information for comparable P551864 cross-reference products also describes these filters as fuel/water separators used in on-road and off-road applications.
Based on the supplied application information, this replacement filter is suitable for the following Komatsu equipment:
| Equipment Models | Application |
|---|---|
| D65EX | Dozer |
| PC210-11 | Excavator |
| PC240-11 | Excavator |
| GD555-5 | Motor Grader |
| HB215-1LC | Hybrid Excavator |
| PW190-11 | Wheeled Excavator |
| WA200-7 / WA200-8 / WA200-8E0 | Wheel Loader |
| WA250-6 | Wheel Loader |
Important: Part-number interchangeability can vary by machine serial number, production year, engine configuration, and filter housing. Buyers should confirm the original filter number and dimensions before placing an order. Public cross-reference databases list 6003193620 alongside several equivalent numbers, including P551864 and FS19770.
For purchasing and product matching, the following numbers can be used as cross-reference information:
Donaldson: P551864 Fiat Kobelco: VA32G6200100 Fleetguard: FS19770 Hifi: SN 25120 TRP DAF: 1500607 Kobelco: 47555456 Komatsu: 6003193602, 6003193620, 6003193610, 6003113620, 6003113610 Mann: WK 940/36 x Wix: 33242
Independent parts databases also identify P551864, FS19770, SN25120, WK94036X, 33242, 47555456 and VA32G6200100 within the same broader interchange family.
For professional buyers, filter quality is only one part of the purchasing decision. Stable specifications, consistent supply, competitive Fuel Water Separator Price, packaging, MOQ flexibility, and responsive service are equally important. CHINA EVERLASTING PARTS CO., LIMITED focuses on aftermarket filtration products for international B2B customers and supports OEM and ODM requirements.
Our filtration range includes air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators, and filter assemblies. This makes the 600-319-3620 replacement a practical addition for distributors looking to expand their heavy-duty filtration product range.
If you require a Custom Fuel Water Separator, private-label packaging, customized specifications, or a new filtration project, our team can discuss OEM and ODM requirements. Buyers can provide a sample, drawing, original part number, application information, or dimensional requirements for evaluation.
★★★★★ Verified Buyer
“The filter specification matched our purchasing requirements, and the supplier provided professional support throughout the order.”
★★★★★ Verified Buyer
“Good option for our aftermarket filter inventory. The communication and product information were clear and easy to check.”
★★★★★ Verified Buyer
“We needed a replacement fuel-water separator for heavy equipment applications. The team responded quickly to our inquiry.”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We also welcome OEM and ODM cooperation for international customers.
We are committed to supporting professional filtration buyers with practical aftermarket products, product matching assistance, bulk-order support, and customized filtration solutions.
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
Request a Quote: Contact us for the latest Fuel Water Separator Price, bulk-order quotation, packaging options, OEM/ODM service, and cross-reference confirmation for 600-319-3620.
