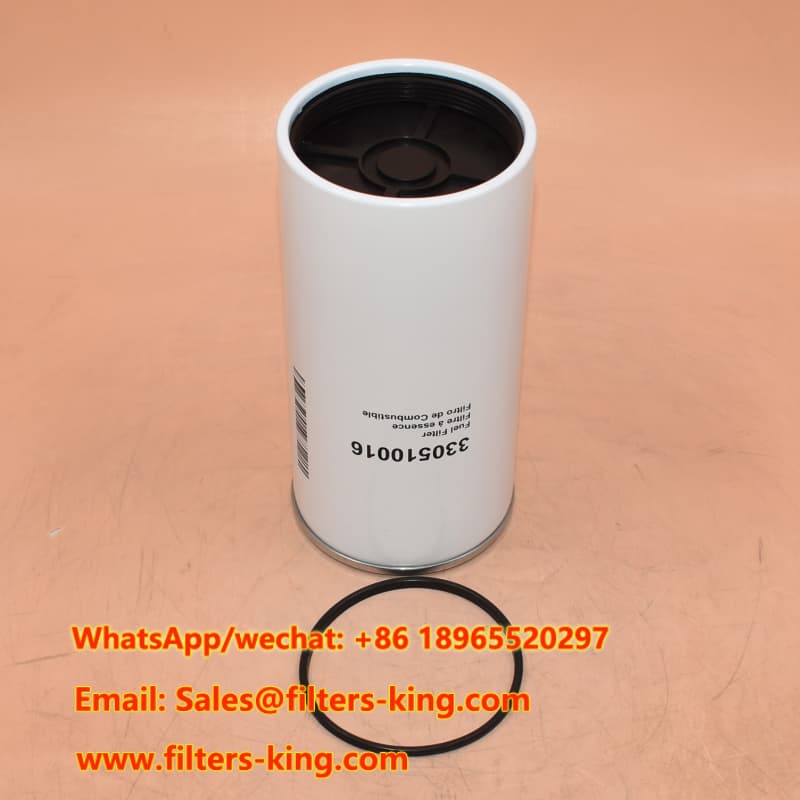

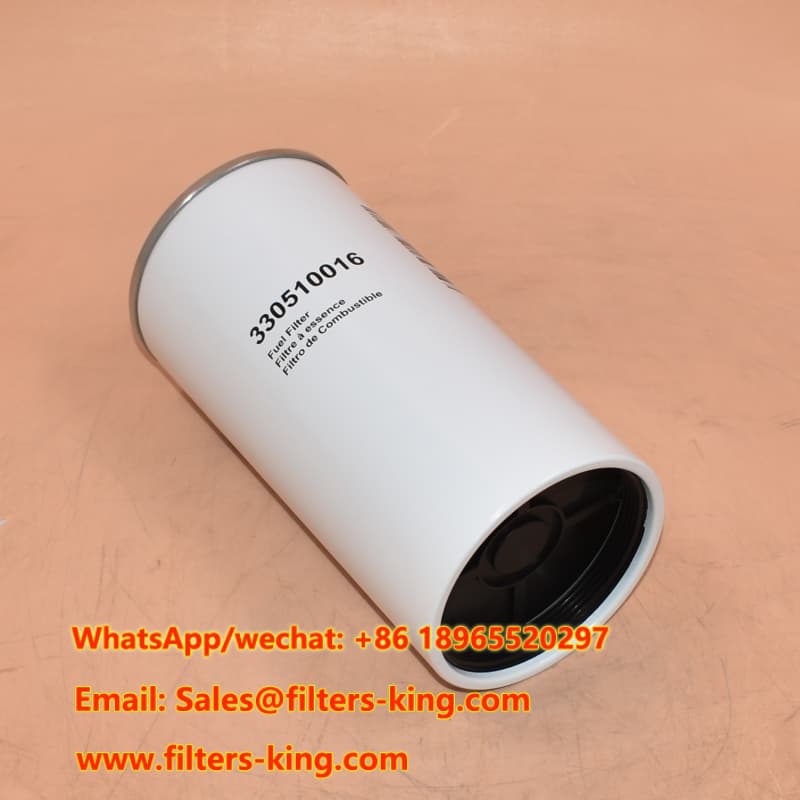

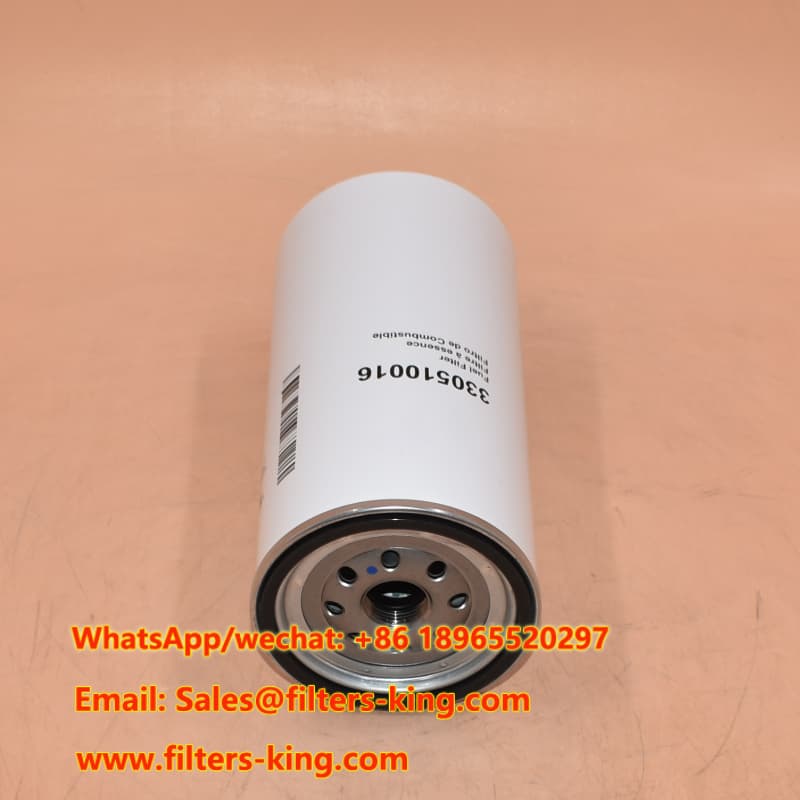

The 330510016 Fuel Water Separator is a high-performance fuel pre-filter designed for KV275 generator applications. It is engineered as a Kohler fuel water separator replacement, providing reliable fuel cleaning and water separation to protect engine injection systems and extend equipment service life.
This generator fuel water separator is widely used in industrial power systems and is suitable for harsh working environments where fuel contamination is a common issue. Its spin-on design ensures fast maintenance and easy replacement during routine fuel water separator change procedures.
Features: Spin-on structure, high-efficiency separation media, durable sealing system.
Advantages: Stable filtration performance and strong compatibility with OEM specifications.
Benefits: Protects engine fuel system, reduces injector wear, improves generator reliability.
Evidence: Compatible with multiple OEM part numbers across global equipment brands.
| Item | Specification |
|---|---|
| Part Number | 330510016 |
| Part Type | Fuel Pre-Filter / Fuel Water Separator |
| Brand | Kohler Replacement |
| Outer Diameter | 4.23 inch (107.4 mm) |
| Length | 8.52 inch (216.4 mm) |
| Thread Size | 1-14 UN |
| Bowl Thread | 3 3/4-10 UN |
| Gasket OD / ID | 4.07 inch / 3.78 inch |
| MOQ | 60 pcs |
This fuel water separator replacement is compatible with Kohler generator models: KD27V12-5CES, KD27V12-5CFS, KD27V20-5CES, KD36V16-5AEP and KV275 generator systems.
It also replaces multiple OEM part numbers across global equipment brands including:
Agco 4347206M3
Baldwin BF1391-O
Bomag 5825015 5825009 05825009 5718031 5825010
Caterpillar 4395037
Claas 130216440 1301644 13016440 0013016440
CNH 500086544
Daewoo 65125015021
DAF 1526655 1533898
Deutz 2113151
Ford 3C469176CA
Donaldson P955606
Fleetguard FS19914
Hamm (Wirtgen Group) 1292404 5825010 1001292404
Hengst H701WK
Hifi SN 916010
Hitachi YA00047220 YA00037134 EOA000557 263J227001
Iveco 5801699334 2997378
Kalmar 923976.3258 9239763258
Konecranes 8802015
Kramer 1000130418
Liebherr 10101998
Man 51125036 51125036000 51125030051
Manitou 709663 608776
Mann WK1080/7x
Mercedes-Benz 0004771302 A4004770301 A0004702190 A0004770303 4770303 6864770003 4702190 A6864770003 A004771302 4160RHHV10MTCSLV A0004770103 4771302 4770103 4700469
Nissan 5223022134
Perkins 4395038
Renault 7424993624
Sany B222100000766
Sandvik BG00362695
Schaeff 5411657780
Sdmo 330510016
Tamrock 55051165
Volvo 20754418 7420754418 11 110 683 VOE3211110683 VOE21409660 VOE7420754418 VOE20593537 VOE4292830 VOE11110683 4292830 3211110683 20593537 11110688 11110683 20765505
★★★★★
"Very stable quality, perfect replacement for Kohler generator filters. Our customers are satisfied with performance." – USA Distributor
★★★★★
"Fast delivery and excellent compatibility with multiple OEM part numbers. Great supplier for bulk orders." – UK Wholesale Customer
★★★★★
"We tested this fuel water separator on heavy-duty generators, works perfectly and stable filtration efficiency." – Middle East Service Company
As a professional filter manufacturer, CHINA EVERLASTING PARTS CO., LIMITED provides full range filtration solutions including fuel water separator change kits, spin-on filters, and OEM replacement parts. We support global B2B partners with stable quality, competitive pricing, and fast production capacity.
We focus on long-term cooperation with filter wholesalers, aftermarket distributors, and industrial maintenance companies worldwide.
WhatsApp/Wechat: +86 18965520297
WhatsApp/Wechat: +86 18144082725
Email: Sales@filters-king.com
Enterprise customers are welcome to request OEM/ODM customization and bulk quotation for generator fuel water separator solutions.
