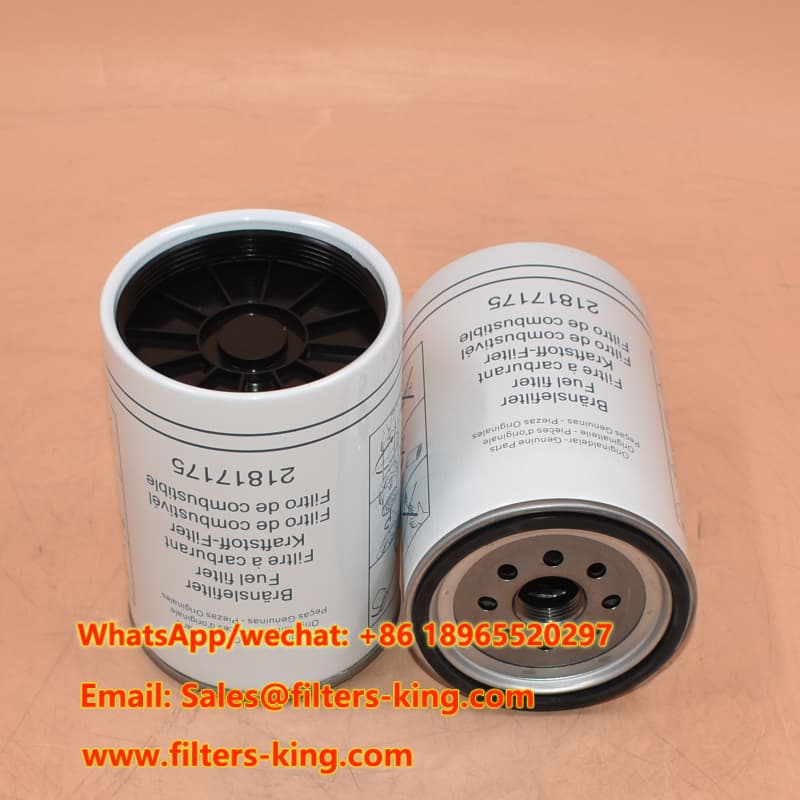

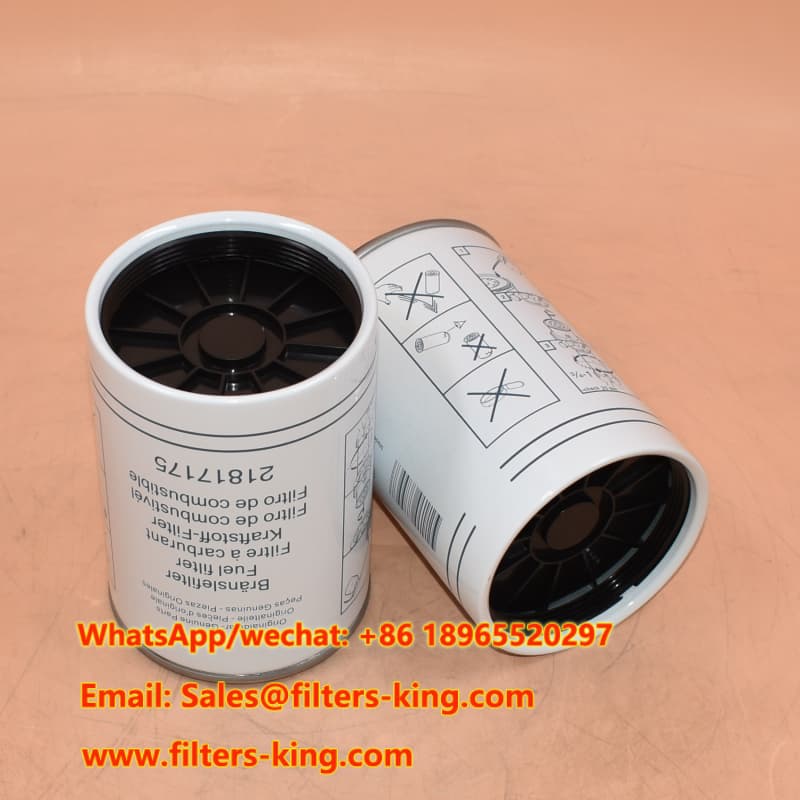

The 21817175 Fuel Water Separator is designed for heavy-duty Volvo truck fuel systems requiring stable diesel filtration and water separation performance. This high-efficiency Volvo Fuel Water Separator Filter helps remove harmful water, rust, and contaminants from diesel fuel before entering the engine injection system.
Manufactured by CHINA EVERLASTING PARTS CO., LIMITED, this Volvo Truck Fuel Water Separator Filter is developed for commercial vehicles operating in demanding transportation, logistics, construction, and industrial environments. OEM and ODM customization services are available for distributors, wholesalers, aftermarket service companies, and filter retailers worldwide.
This Diesel Fuel Water Separator Replacement effectively removes water contamination from diesel fuel, helping protect fuel injectors, pumps, and engine components from corrosion and premature wear.
The filter media is engineered to capture fine particles and impurities while maintaining stable fuel flow for Volvo commercial truck applications.
As a professional Custom Fuel Water Separator manufacturer, we support logo printing, packaging customization, filter media upgrades, and private label cooperation for global B2B customers.
Compatible with Volvo 8900, 9500, FE320, and FL280-16 trucks. Designed as a direct replacement for original Volvo fuel water separator systems.
| Parameter | Details |
|---|---|
| Part Number | 21817175 |
| Part Type | Fuel Water Separator |
| Brand | Volvo Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 4.37 inch (110.99 mm) |
| Thread Size | 1-14 UN |
| Length | 6.23 inch (158.24 mm) |
| Gasket OD | 4.12 inch (104.7 mm) |
| Gasket ID | 3.72 inch (94.5 mm) |
| Bowl Thread | 3 3/4-10 UN |
| Compatibility | Volvo 8900 9500 FE320 FL280-16 |
| Brand | Part Number |
|---|---|
| Caterpillar | 460-0310 |
| Donaldson | P553227 |
| Doosan Daewoo | 40050400084 |
| Fleetguard | FS20112 |
| Hifi | SN 909120 |
| Keestrack | 100782 880346 |
| Mann | WK11038z |
| Perkins | 4600311 |
| Renault | 7421538977 |
| SF Schupp | SK 48741 |
| Volvo | 21538975 VOE21538977 |
This Fuel Water Separator Change solution is suitable for:
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filter Assemblies.
We provide stable quality products for global aftermarket customers and support OEM and ODM manufacturing services for wholesalers, retailers, and industrial distributors.
"The filtration quality is excellent and the separator fits Volvo trucks perfectly. Stable supplier for our aftermarket business."
- Michael R., USA
"Very reliable OEM ODM Fuel Water Separator manufacturer. Good packaging and fast shipment."
- Carlos T., Mexico
"We purchased this Volvo Fuel Water Separator Filter in bulk for our filter stores. Customers are satisfied with the quality."
- Ahmed K., UAE
A fuel water separator removes water and contaminants from diesel fuel to protect the fuel injection system and improve engine reliability.
Yes. We provide OEM and ODM manufacturing services including customized branding, packaging, and filter specifications.
The MOQ for this product is 60 pieces.
